steel cord fabric 2+2×0.25HT strong steel Use for the base of raised edge conveyor belt

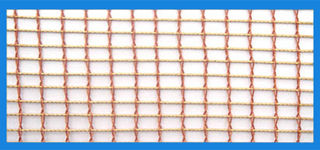

Steel cord fabric

Type :2+2×0.25HT

strong steel Use for the base of raised edge conveyor belt

Material of Warp :Polyester yorn 1000/2

Space of Warp: 12mm

Material of  weft : Brass coated steel cord

Structure of steel cord  : 2+2x0.25HT

Space of weft : 25mm, 20mm.15mm,10mm,8mm,4mm

Thickness of steel cord fabric : 1.37mm+/-0.3mm

Width of steel core fabric  :200mm-2800mm

Packing :

l It is rolled with square hole wooden spool or paper spool

l There are about 10cm of steel core fabric at the ends .It is fixed with glue

l Within fixed with wooden spool or paper spool

l Outsize fixed with strapping tape Inner with with black PVC pellicle sealed package ,outside with Green/white waterproof cloth

We can produce this prodcuts accroding to customers request !
